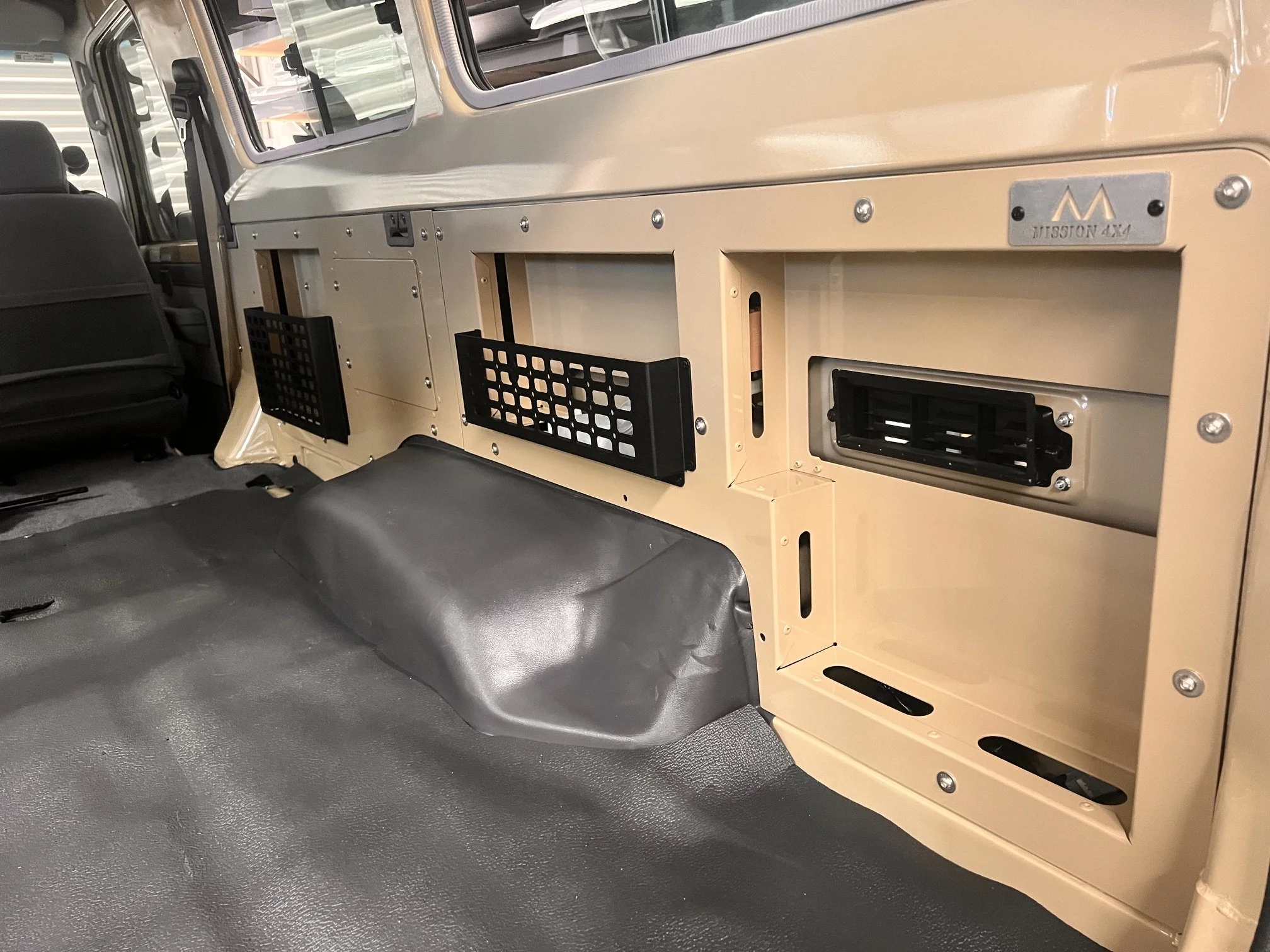

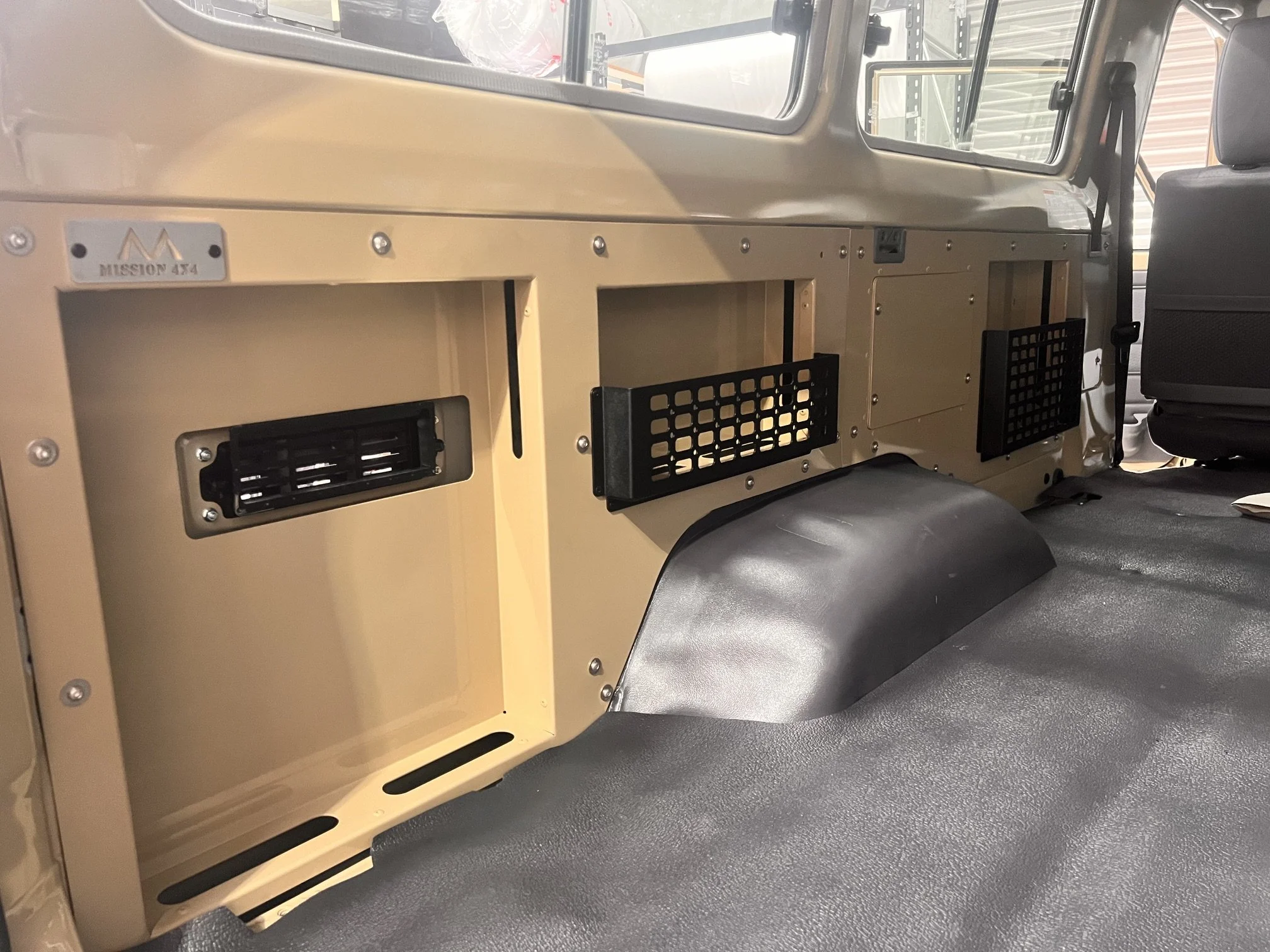

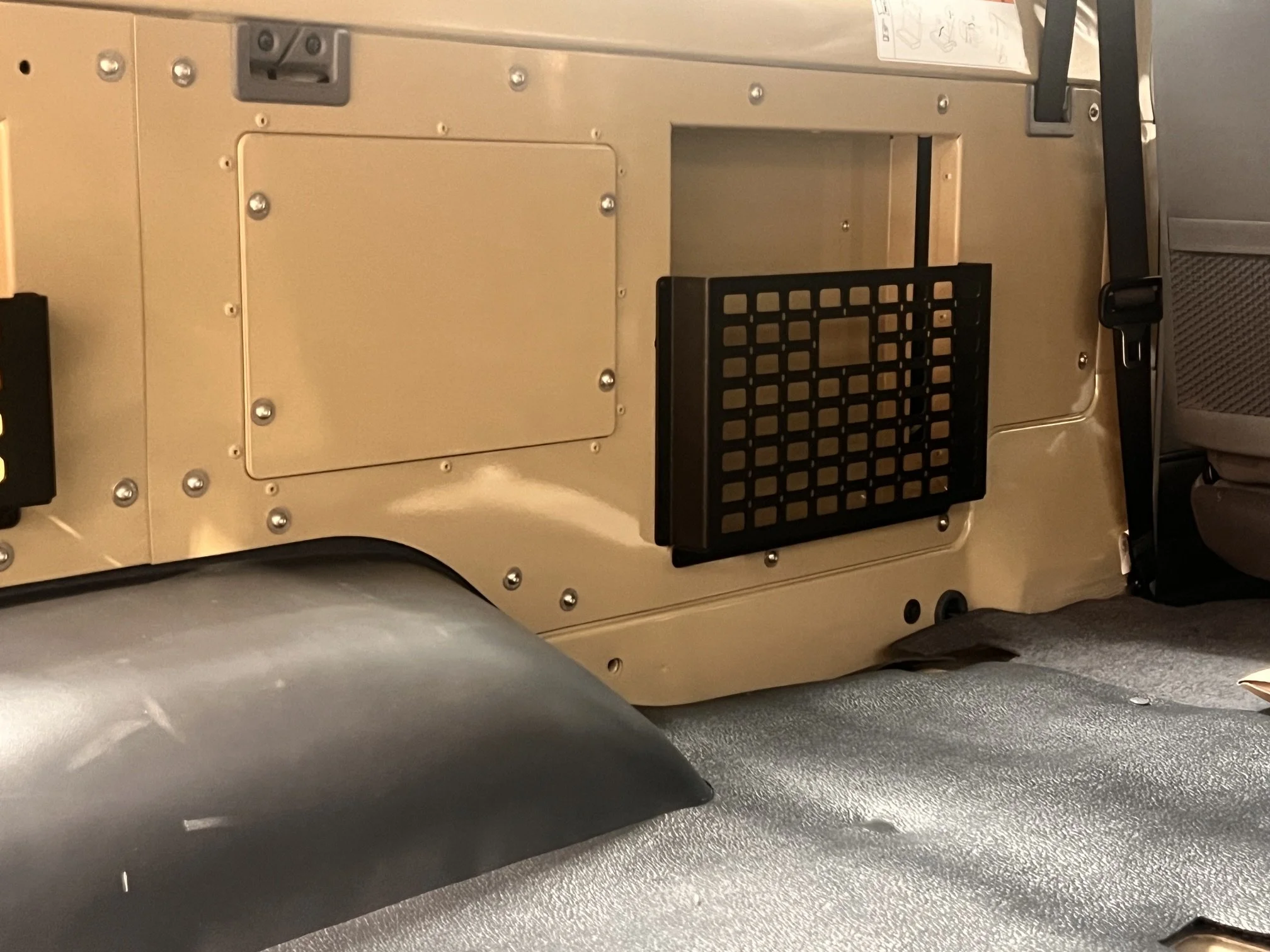

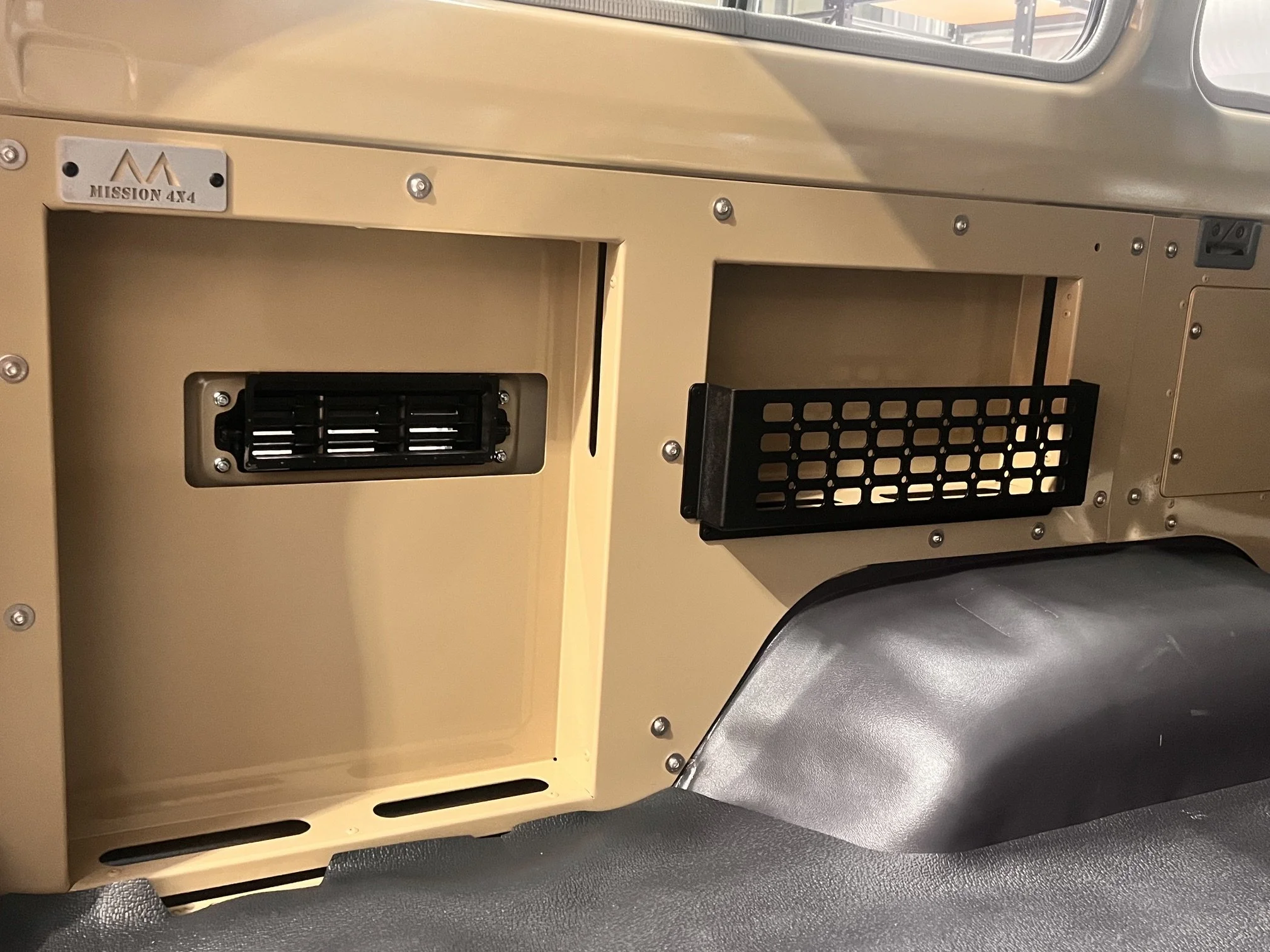

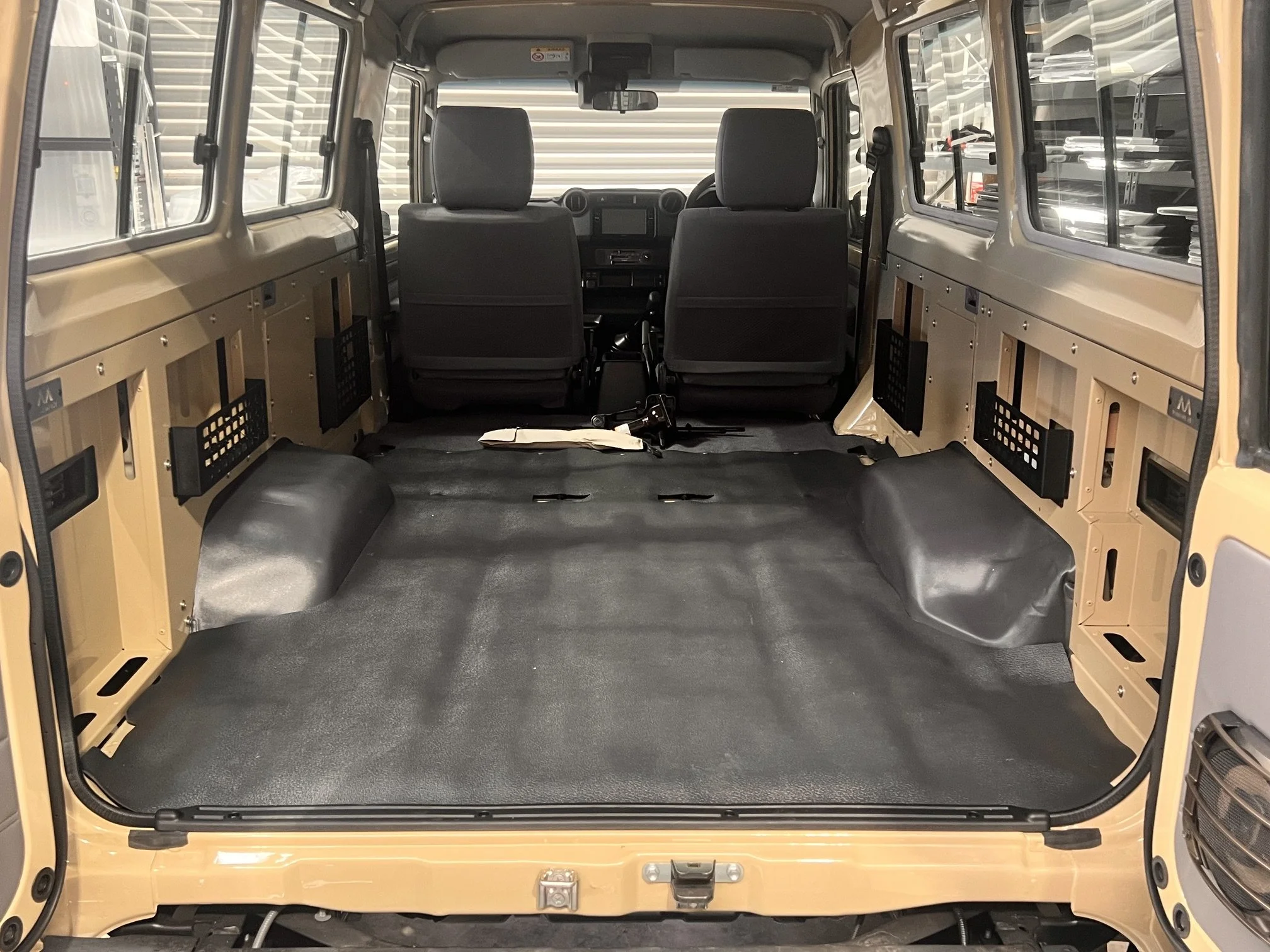

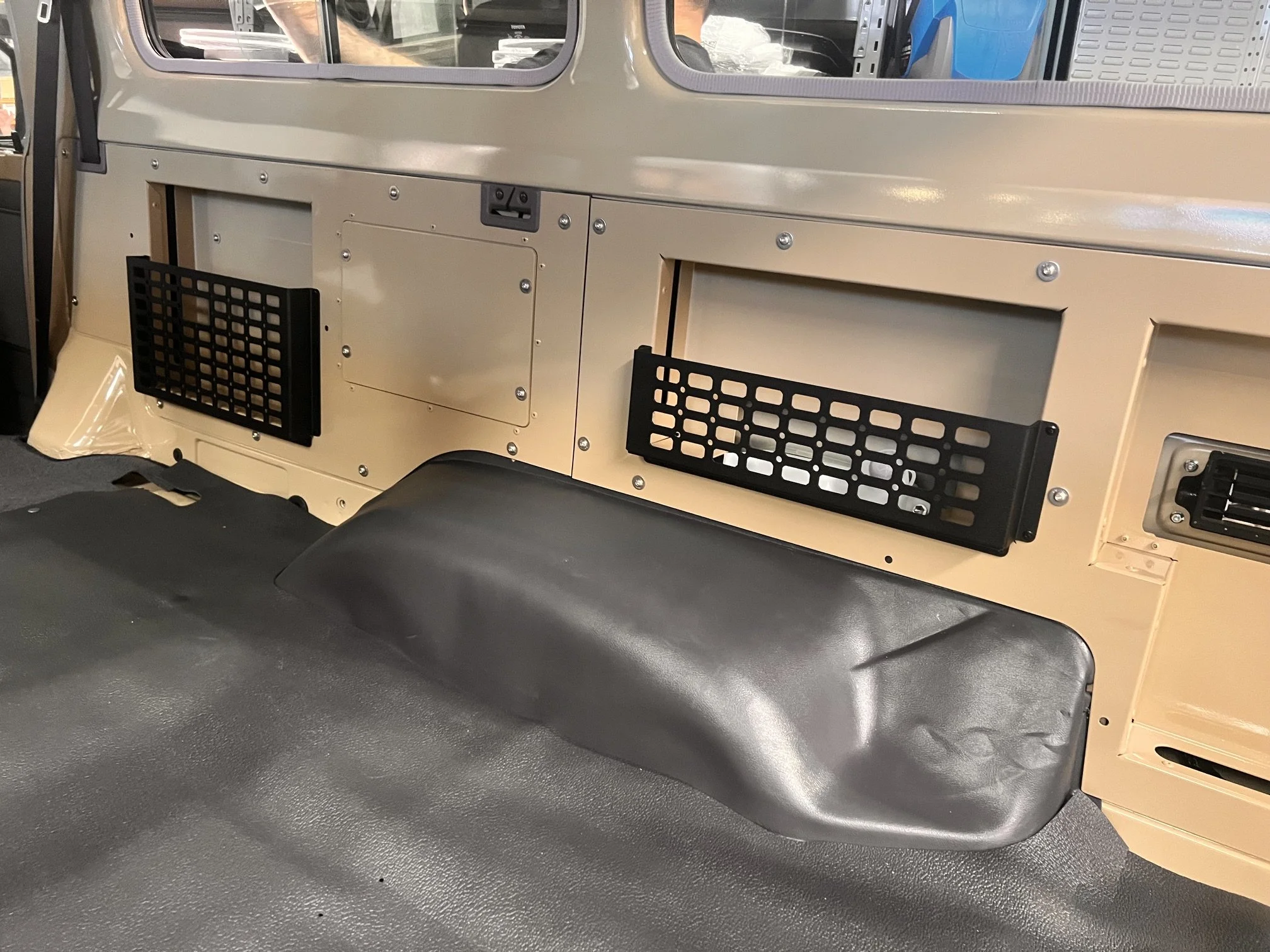

Mission 4x4 Internal Aluminium Storage Panels are designed specifically for the Toyota LandCruiser 78 Series Troop Carrier, replacing the factory interior trim panels on both the left and right sides of the rear cargo area.
The system is designed to utilise the otherwise wasted cavity space inside the Troopy, creating practical internal storage while also providing dedicated space for electrical, air and water system components.
Manufactured locally in Western Australia, the system is constructed from a combination of 3 mm and 2 mm aluminium. Components are precision laser cut using modern CNC laser-cutting equipment and riveted together to create a strong yet lightweight modular system.
The panels are particularly useful for touring and custom electrical installations. The internal cavities can be used to house equipment such as inverters, electrical components, water pumps and other touring accessories. An ARB Twin Compressor mounting bracket is included with the panel system.
Purpose-designed cut-outs underneath and along the sides of the storage boxes provide access for routing electrical wiring, plumbing and other services through the vehicle.

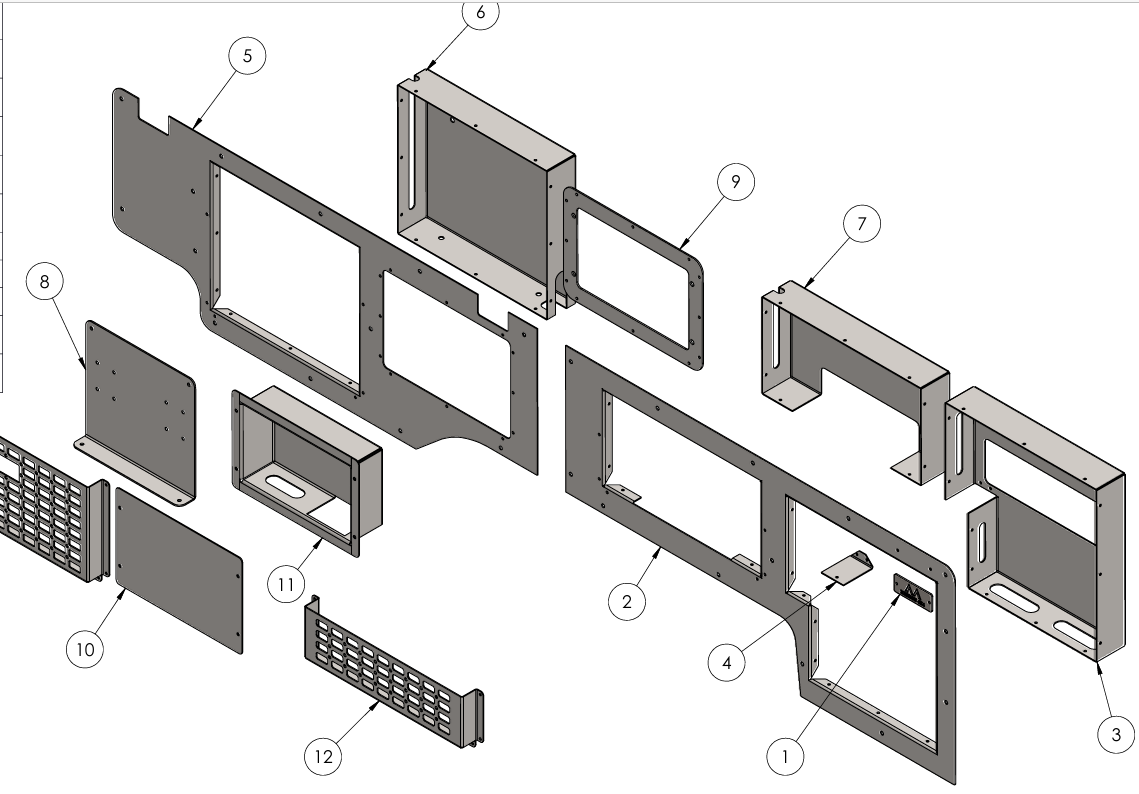

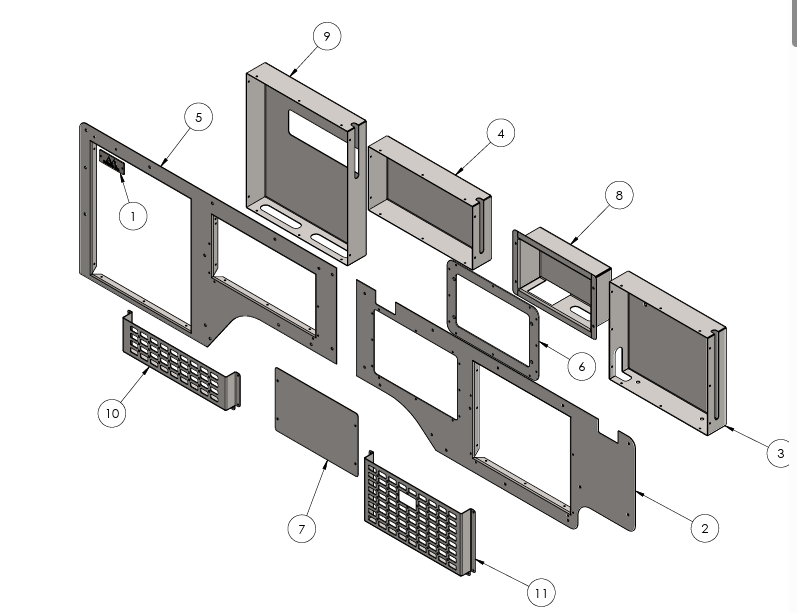

The complete system comes in four sections — two sections for each side of the Troopy — making installation and access easier.
Features include: 3 mm and 2 mm aluminium construction; four-piece modular design; left and right side coverage; integrated internal storage; cable and plumbing access cut-outs; ARB Twin Compressor mounting bracket included; fitting hardware included; lightweight construction; black textured powder-coated finish; locally manufactured in Western Australia.
Please read before purchasing.
Installation of this internal panel system requires modification to the vehicle on the left-hand side.
The factory jack must be removed from its original location, and the associated bracket requires modification/bending inward towards the vehicle cavity to provide clearance for the internal panel system.
A factory crossbar located towards the rear of the left-hand cavity also requires removal for installation.
The Mission 4x4 panel system is designed to form a rigid structure once correctly installed. Because removal of an original vehicle brace is involved, Mission 4x4 recommends confirming any structural or engineering implications applicable to your particular vehicle and jurisdiction before installation.
All required panel fitting hardware is supplied.
Designed and manufactured in Western Australia by Mission 4x4.
Mission 4x4 Internal Aluminium Storage Panels are designed specifically for the Toyota LandCruiser 78 Series Troop Carrier, replacing the factory interior trim panels on both the left and right sides of the rear cargo area.
The system is designed to utilise the otherwise wasted cavity space inside the Troopy, creating practical internal storage while also providing dedicated space for electrical, air and water system components.
Manufactured locally in Western Australia, the system is constructed from a combination of 3 mm and 2 mm aluminium. Components are precision laser cut using modern CNC laser-cutting equipment and riveted together to create a strong yet lightweight modular system.
The panels are particularly useful for touring and custom electrical installations. The internal cavities can be used to house equipment such as inverters, electrical components, water pumps and other touring accessories. An ARB Twin Compressor mounting bracket is included with the panel system.
Purpose-designed cut-outs underneath and along the sides of the storage boxes provide access for routing electrical wiring, plumbing and other services through the vehicle.
The complete system comes in four sections — two sections for each side of the Troopy — making installation and access easier.
Features include: 3 mm and 2 mm aluminium construction; four-piece modular design; left and right side coverage; integrated internal storage; cable and plumbing access cut-outs; ARB Twin Compressor mounting bracket included; fitting hardware included; lightweight construction; black textured powder-coated finish; locally manufactured in Western Australia.
Please read before purchasing.
Installation of this internal panel system requires modification to the vehicle on the left-hand side.
The factory jack must be removed from its original location, and the associated bracket requires modification/bending inward towards the vehicle cavity to provide clearance for the internal panel system.
A factory crossbar located towards the rear of the left-hand cavity also requires removal for installation.
The Mission 4x4 panel system is designed to form a rigid structure once correctly installed. Because removal of an original vehicle brace is involved, Mission 4x4 recommends confirming any structural or engineering implications applicable to your particular vehicle and jurisdiction before installation.
All required panel fitting hardware is supplied.
Designed and manufactured in Western Australia by Mission 4x4.
